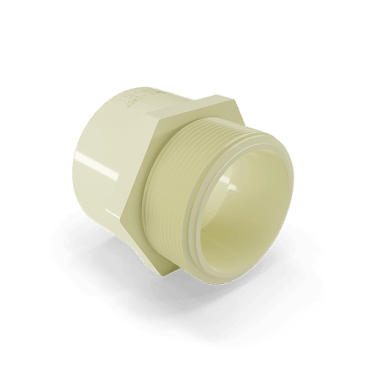

Male Threaded Adapter for CPVC Pipes
AS PER ASTM D-2846
The Finolex Male-Threaded Adapter for CPVC pipes serves as a connector that enables the pipe to be attached to female-threaded fittings in a pipeline. Our MTA fitting is designed to create a secure and watertight connection, preventing any leaks or disruptions in the plumbing system.

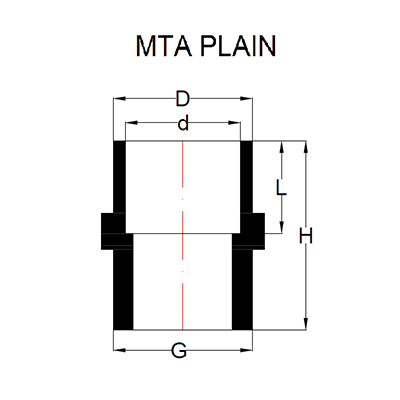

Dimensions of Male Threaded Adapter
| Size (mm) |
Size (Inch) |
D | d | G | H | L | Material Code | Standard Pkg. |
| 15 | ½" | 21.50 | 16.10 | 1/2″ | 41.50 | 13.30 | 6051 | 300 |
| 20 | ¾" | 27.81 | 22.45 | 3/4″ | 42.20 | 17.93 | 6052 | 700 |
| 25 | 1" | 34.47 | 28.87 | 1″ | 47.50 | 23.01 | 6053 | 390 |
| 32 | 1¼" | 41.74 | 35.20 | 11/4″ | 55.40 | 28.00 | 6054 | 75 |
| 40 | 1½" | 49.20 | 41.66 | 11/2″ | 62.00 | 33.30 | 6055 | 50 |
| 50 | 2" | 64.60 | 54.40 | 2″ | 74.00 | 43.70 | 6056 | 25 |
| * ALL dimensions in "MM" |
Related Products
-
COUPLER -
ELBOW 90° -
ELBOW 90° – BRASS INSERT -
ELBOW 45° -
TEE -
CROSS TEE -
TEE – BRASS INSERT -
END CAP -
MALE THREADED ADAPTER (M.T.A.) – BRASS INSERT -
UNION -
STEP OVER BEND -
TANK NIPPLE -
TANK NIPPLE SOCKET -
TRANSITION BUSH -
SWEEP BEND -
PIPE CLIP -
POWDER COATED METAL CLAMP FOR CPVC PIPE -
CPVC BALL VALVE -
REDUCER -
REDUCING BUSH -
REDUCING ELBOW 90° -
REDUCING ELBOW 90° – BRASS INSERT -
REDUCING TEE -
REDUCING MALE THREADED ADAPTER (M.T.A.) -
REDUCING MALE THREADED ADAPTER (M.T.A.) – BRASS INSERT -
REDUCING FEMALE THREADED ADAPTER (F.T.A.) – BRASS INSERT -
TEE HOLDER -
FLANGE WITH GASKET – OPEN -
FLANGE WITH GASKET – CLOSE -
ALL TOP 6″ & 7″ MIXER -
HOT UP COLD DOWN 6″ & 7″ MIXER -
HOT SIDE COLD DOWN 6″ & 7″ MIXER -
LONG CONCEALED VALVE -
SHORT CONCEALED VALVE -
SCH 40 – COUPLER -
SCH 40 – ELBOW 90° -
SCH 40 – ELBOW 45° -
SCH 40 – TEE -
SCH 40 – END CAP -
SCH 40 – REDUCER BUSH -
SCH 80 – COUPLER -
SCH 80 – ELBOW 90° -
SCH 80 – ELBOW 45° -
SCH 80 – TEE -
SCH 80 – END CAP -
SCH 80 – MALE THREADED ADAPTER (M.T.A.) -
SCH 80 – FEMALE THREADED ADAPTER (F.T.A.) -
SCH 80 – REDUCER -
SCH 80 – REDUCER BUSH -
SCH 80 – REDUCING TEE -
SCH 80 – FLANGE WITH GASKET – CLOSE -
CPVC Pipe - SCH 80 Flange With Gasket Open -
CPVC Red Handle Ball Valve Accessory -
CPVC Top Bottom 6″ & 7″ - Wall Mixer Adapter -
Male-Threaded Adapter for CPVC Pipes -
3 WAY ELBOW -
Non-Return Valve for CPVC Pipes -
TOP SIDE 6″ & 7″ MIXER -
Female Adaptor for CPVC Pipes -
Female Brass Adaptor for CPVC Pipes -
Hex Nipple for CPVC Pipes -
Reducing Female Threaded Adapter for CPVC Pipes
-
What is the installation process for a male-threaded adapter?
To install a male-threaded adapter, begin by ensuring the threaded area is clean and free of debris. Apply thread sealant or tape to the male threads to create a secure seal. Then, carefully screw the adapter into the female fitting until it is snug, being cautious not to over-tighten.
-
What challenges are commonly associated with male-threaded adapters?
Common challenges associated with male-threaded adapters include potential leaks due to improper sealing or overtightening, difficulty in achieving a tight seal in certain applications, and compatibility issues with different types of piping materials or thread sizes. Regular maintenance and proper installation techniques can help mitigate these challenges.
