3 Way Elbow Fitting for CPVC Pipes
AS PER ASTM D-2846
This Elbow is used to inter connect three pipes in different direction at 90°

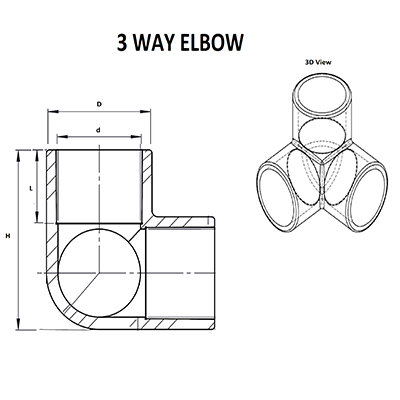

Dimensions of 3 Way Elbow Pvc
| Size (mm) |
Size (Inch) |
D | d | L | H | Material Code | Standard Pkg. |
| 20 | 3/4" | 26.85 | 22.45 | 18.00 | 44.09 | 6023 | 400 |
| 25 | 1" | 35.18 | 28.83 | 23.00 | 56.12 | 6024 | 250 |
| * ALL dimensions in "MM" | |||||||
