Flange With Close Gasket for CPVC Pipes
AS PER ASTM D-4024
A flange is used for connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning ,inspection or modification.

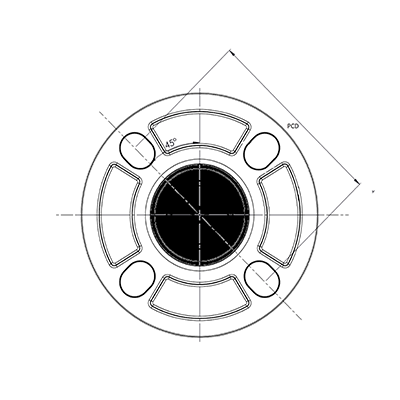

Dimensions of Flange with Gasket - Close
| Size (mm) |
Size (Inch) |
PCD | Material Code | Standard Pkg. |
| 25 | 1" | 79.20 | 6205 | 100 |
| 32 | 1.1/4" | 88.90 | 6206 | 80 |
| 40 | 1.1/2" | 98.60 | 6207 | 40 |
| 50 | 2" | 120.60 | 6208 | 50 |
| * ALL dimensions in "MM" |
