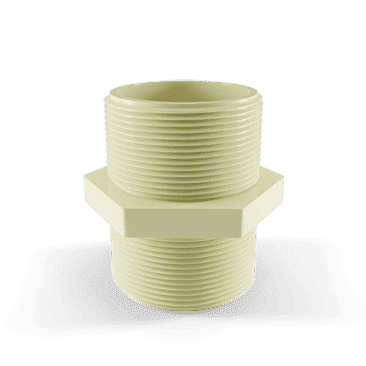

Dimensions of Hex Nipple - CPVC Pipes
| Size (mm) |
Size (Inch) |
H | L (Threading Length) | Material Code | Standard Pkg. |
| 15 | ½” | 41.00 | 16.30 | 6194 | 300 |
| 20 | 3/4" | 44.60 | 18.00 | 6195 | 700 |
| 25 | 1" | 50.60 | 20.80 | 6196 | 390 |
| 32 | 1.1/4" | 56.00 | 23.50 | 6197 | 75 |
| 40 | 1.1/2" | 59.00 | 25.00 | 6198 | 50 |
| * ALL dimensions in "MM" | |||||
