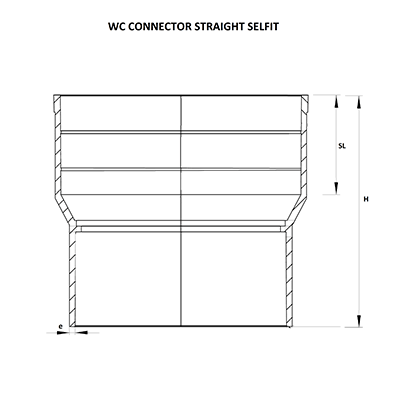

Dimensions of Straight Connector
| Nominal Dia (mm) |
Nominal Dia (Inch) | H | SL | e (min) |
Material Code | Standard Pkg. |
| 125X110 | 4½"X4" | 121.00 | 52.00 | 3.00 | 7725 | 63 |
| * All dimensions in "MM" |
