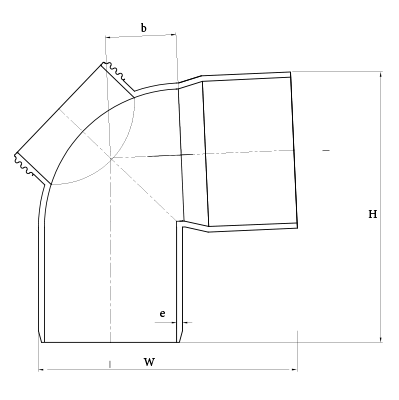

| Nominal Dia (mm) |
Nominal Dia (Inch) | b | W | H | e (min) |
Material Code | Standard Pkg. |
| 50 | 1½" | 25.00 | 92.74 | 91.60 | 3.20 | 7595 | 80 |
| 63 | 2" | 32.00 | 113.00 | 124.50 | 3.20 | 7596 | 35 |
| 75 | 2½" | 38.00 | 137.00 | 147.00 | 3.20 | 7597 | 25 |
| 90 | 3" | 53.00 | 174.50 | 177.00 | 3.20 | 7598 | 24 |
| 110 | 4" | 56.00 | 196.00 | 198.00 | 3.20 | 7599 | 18 |
| 160 | 6" | 86.00 | 270.00 | 273.00 | 4.00 | 7600 | 8 |
| * All dimensions in "MM" |
Yes, our 87.5° bend fitting is suitable for both residential and industrial plumbing needs, offering versatility and reliability in various applications.
The 87.5° bend fitting is durable, providing long-lasting performance in plumbing systems. Its lifespan depends on usage, installation quality, and environmental factors.
