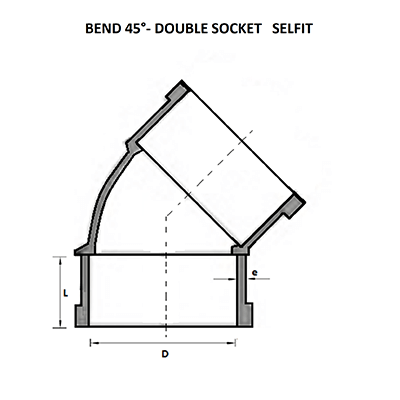

Dimensions of Double Socket Bend 45
| Nominal Dia (mm) |
Nominal Dia (Inch) | D | L | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 75.00 | 40.00 | 2.90 | 7609 | 90 |
| 110 | 4" | 110.00 | 48.00 | 2.90 | 7610 | 32 |
| * All dimensions in "MM" |
