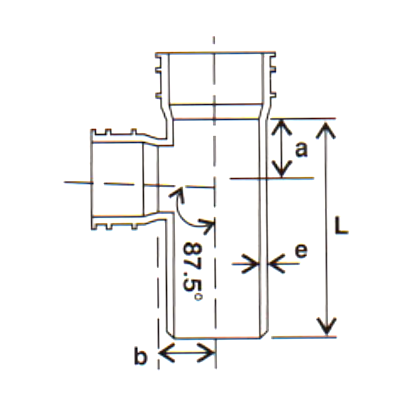

REDUCING TEE – PLAIN

As Per IS 14735

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 87.5°.

Dimensions

Nominal Dia
(mm)
Nominal Dia (Inch) L a b e
(min)
Material  Code Standard Pkg.
90 x 75 3" x  2½" 169.00 46.00 46.00 3.20 7651 16
110 x 75 4" x 2½" 178.00 59.00 59.00 3.20 7652 18
160 x 110 6" x 4" 257.00 80.00 80.00 4.00 7653 11
* All dimensions in "MM"
