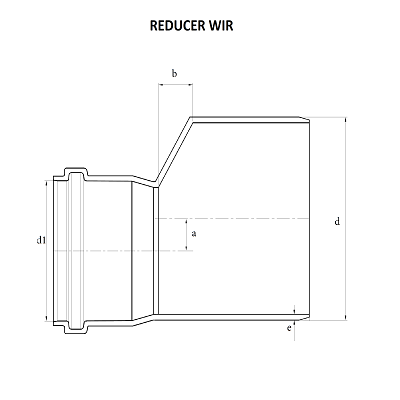

Dimensions
| Nominal Dia (mm) |
Nominal Dia (Inch) | a | b | d | d1 | e (min) |
Material Code | Standard Pkg. |
| 110 x 75 | 4" x 2½" | 17.50 | 21.50 | 110.00 | 75.00 | 3.20 | 7625 | 60 |
| 110 x 90 | 4" x 3" | 10.00 | 11.00 | 110.00 | 90.00 | 3.20 | 7626 | 40 |
| 160 x 110 | 6" x 4" | 25.00 | 34.00 | 160.00 | 110.00 | 4.00 | 7627 | 25 |
| * All dimensions in "MM" |
