DOUBLE Y – DOOR
As Per IS 14735
To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°. Available with a door for cleaning purposes.

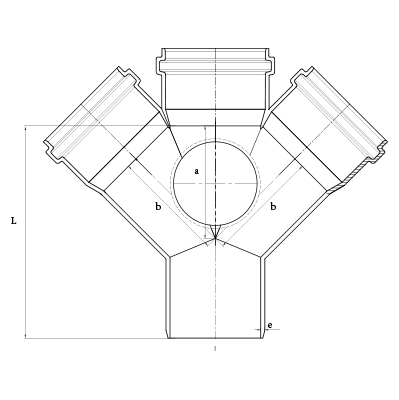

Dimensions of Ringfit Double Y Door
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 157.00 | 87.00 | 87.00 | 3.20 | 7576 | 12 |
| 90 | 3" | 190.00 | 102.00 | 102.00 | 3.20 | 7577 | 10 |
| 110 | 4" | 221.00 | 127.00 | 127.00 | 3.20 | 7578 | 6 |
| 160 | 6" | 322.00 | 191.00 | 191.00 | 4.00 | 7579 | 4 |
| * All dimensions in "mm" |
