SWR Tee Pipe - Plain
As Per IS 14735
To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°
Dimensions of Tee
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 134.00 | 38.00 | 39.00 | 3.20 | 7526 | 18 |
| 90 | 3" | 156.00 | 45.00 | 48.00 | 3.20 | 7527 | 18 |
| 110 | 4" | 183.00 | 57.00 | 57.00 | 3.20 | 7528 | 12 |
| 160 | 6" | 259.00 | 80.00 | 80.00 | 4.00 | 7529 | 8 |
| * All dimensions in "mm" |
Related Products
-
COUPLER -
BEND 87.5° – PLAIN -
BEND 87.5° – DOOR -
BEND 45° – PLAIN -
BEND – SIDE DOOR LEFT HAND -
BEND – SIDE DOOR RIGHT HAND -
TEE – PLAIN -

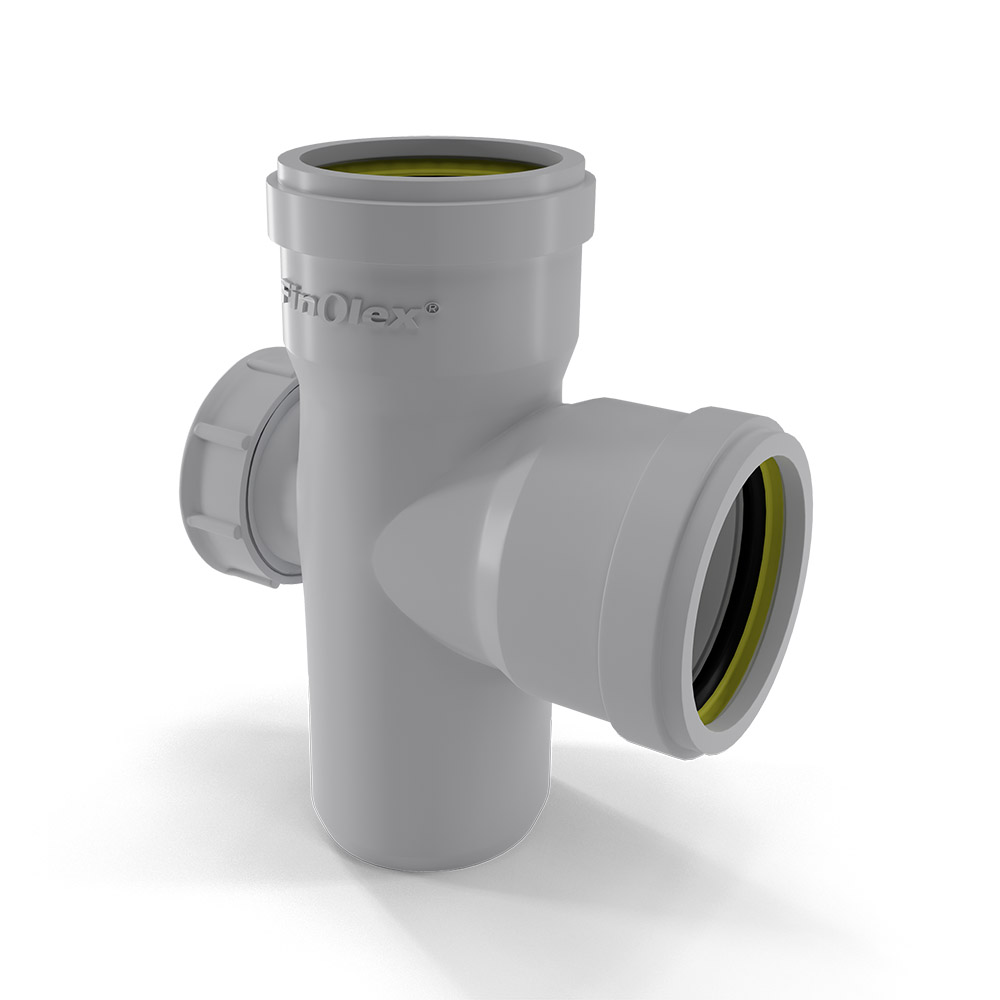

TEE – DOOR -
TEE – SIDE DOOR LEFT HAND -
TEE – SIDE DOOR RIGHT HAND -
CROSS TEE – PLAIN -
CROSS TEE – DOOR -
CLEANING PIPE -
REDUCER -
REDUCING TEE – PLAIN -
REDUCING TEE – DOOR -
REDUCING TEE – SIDE DOOR LEFT HAND -
REDUCING TEE – SIDE DOOR RIGHT HAND -
SWEPT TEE – PLAIN -
SWEPT TEE – DOOR -
REDUCING SWEPT TEE – PLAIN -
REDUCING SWEPT TEE – DOOR -
SINGLE Y – PLAIN -

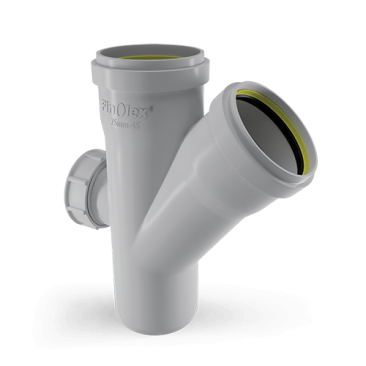

SINGLE Y – DOOR -
SINGLE Y – SIDE DOOR LEFT HAND -
SINGLE Y – SIDE DOOR RIGHT HAND -
DOUBLE Y – PLAIN -

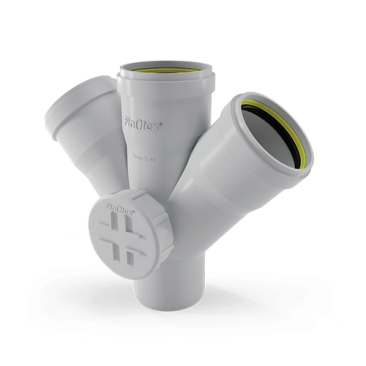

DOUBLE Y – DOOR -
