BEND 87.5° – DOOR

As Per IS 14735

To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose.

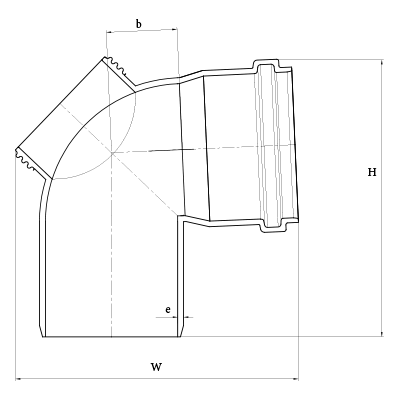

Dimensions

Nominal Dia (mm) Nominal Dia (Inch) b W H e
(min)
Material  Code Standard Pkg.
75 2½" 38.00 135.00 138.00 3.20 7509 21
90 3" 45.00 158.00 158.00 3.20 7510 24
110 4" 52.00 185.00 188.00 3.20 7511 15
160 6" 78.00 260.00 265.00 4.00 7512 7
* All dimensions in "mm"
