MULTI FLOOR TRAP – WITH JALI
To drain wastewater from bathrooms/ wash basins and convey to the main pipeline. It prevents odour.

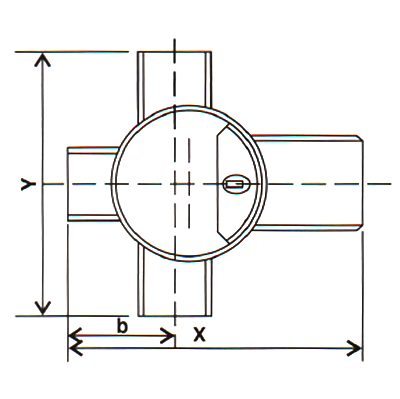

Dimensions of Multifloor Trap with Jali
| Nominal Dia (mm) |
Nominal Dia (Inch) | Y | b | X | Material Code | Standard Pkg. |
| 110 x 75 | 4" X 2½" | 180.00 | 90.00 | 190.00 | 7691 | 24 |
| 110 x 75 (NEW) |
4" X 2½" | 180.00 | 90.00 | 190.00 | 7692 | 24 |
| * All dimensions in "MM" | ||||||
