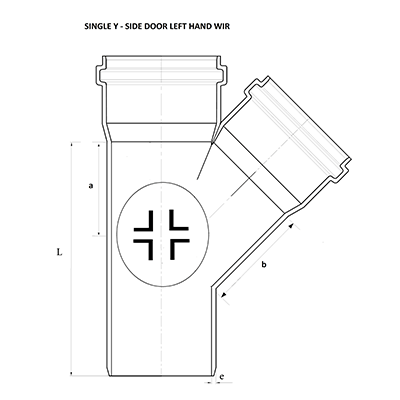

Dimensions of Single Y Side Door Left Hand
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 110 | 4" | 224.60 | 126.60 | 126.60 | 3.40 | 7570 | 8 |
| * All dimensions in "mm" |
