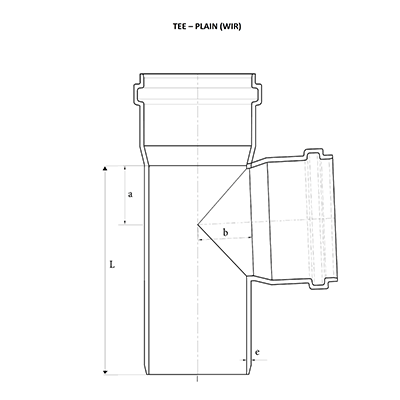

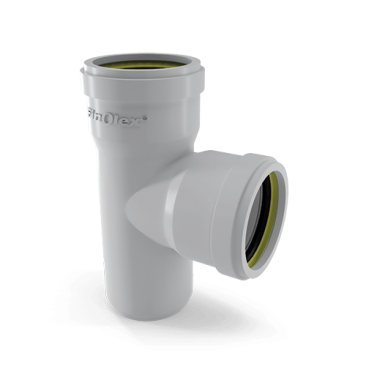

Dimensions of Tee
| Nominal Dia (mm) | Nominal Dia (Inch) | L | a | b | e (min) |
Material Code | Standard Pkg. |
| 75 | 2½" | 134.00 | 38.00 | 39.00 | 3.20 | 7526 | 18 |
| 90 | 3" | 156.00 | 45.00 | 48.00 | 3.20 | 7527 | 18 |
| 110 | 4" | 183.00 | 57.00 | 57.00 | 3.20 | 7528 | 12 |
| 160 | 6" | 259.00 | 80.00 | 80.00 | 4.00 | 7529 | 8 |
| * All dimensions in "mm" |
