CPVC Brass Fta Fitting for ASTM Pipes
As Per ASTM D-2467
To connect male threaded CP/Metal fittings like taps, showers etc. to a pipeline.

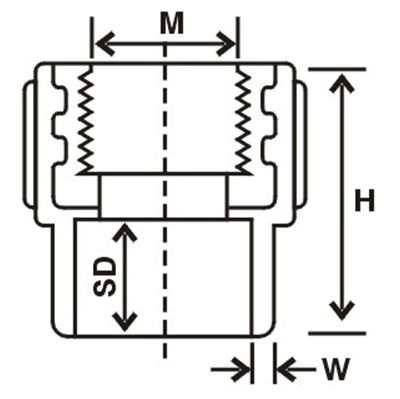

Dimensions of Female Threaded Adaptor Metal Insert
| Size (mm) |
Size (Inch) |
H | W | SD | Material Code | Standard Pkg. |
| 15 | ½” | 47.00 | 3.73 | 22.22 | 4605 | 210 |
| 20 | ¾” | 51.00 | 3.91 | 25.40 | 4606 | 48 |
| 25 | 1” | 56.50 | 4.55 | 28.58 | 4607 | 38 |
| 32 | 1¼” | 57.50 | 4.85 | 31.75 | 4608 | 32 |
| 40 | 1½” | 60.40 | 5.08 | 34.93 | 4609 | 22 |
| 50 | 2” | 73.50 | 5.54 | 38.10 | 4610 | 9 |
| 65 | 2.1/2" | 82.20 | 7.46 | 45.60 | 4611 | 6 |
| 80 | 3" | 86.90 | 7.62 | 48.00 | 4612 | 5 |
| * All dimensions in "MM" |
