SWR PIPES WITH INTEGRATED RINGS

Finolex SWR pipes are specially designed and manufactured using high grade raw materials and are an ideal solution for efficient removal of waste without leakage in the drainage system. SWR pipes and fittings are used for non-pressure plumbing applications such as transportation of soil, waste and rainwater, non-pressure industrial drainage applications, and waste discharge systems in residential and commercial complexes, resorts, and hospitals. SWR pipes are offered in two primary types; type A for rainwater and vents and type B for soil and waste discharge. Finolex SWR pipes support easy installation as the Integrated Ring pre-fitted in the grooveof the socket remains permanently positioned. The joint is made simply by pushing the spigot end into the socket end, without the use of any Solvent Cement. Finolex lubricant should be used for easy insertion. The ring forms a leak proof joint and absorbs the linear expansion and contraction, keeping the seal intact.

SWR SELFIT PVC PIPES

Finolex SWR pipes are specially designed and manufactured using high grade raw materials and are an ideal solution for efficient removal of waste without leakage in the drainage system. SWR pipes and fittings are used for non-pressure plumbing applications such as transportation of soil, waste and rainwater, non-pressure industrial drainage applications, and waste discharge systems in residential and commercial complexes, resorts, and hospitals. SWR pipes are offered in two primary types; type A for rainwater and vents and type B for soil and waste discharge. Finolex Selfit SWR pipes are manufactured in such a way that one end of the pipe is plain, while the other is self-socketed and facilitates ease in jointing by the use of Finolex plumbing solvent cement and they formed a permenant water tight joint which is durable.

COUPLER

Used to join two lengths of pipes.

BEND 87.5° – PLAIN

To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°.

BEND 45° PLAIN

Used as a shoe for a rain water drainage line & can also provide a 45° turn to the pipeline.

BEND 45°- DOUBLE SOCKET

To provide 45° turn to the pipeline. Sockets are provided at both ends of Bend. Also used as a shoe for a rain water drainage pipeline.

BEND – DOUBLE SOCKET PLAIN

To collect waste water from the internal pipeline and divert it to the main pipeline. Bend is provided with inner socket at both ends.

BEND – DOUBLE SOCKET DOOR

To collect waste water from the internal pipeline and divert it to the main pipeline. Bend is provided with inner socket at both ends. Available with a door for cleaning purposes.

TEE – PLAIN

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°.

TEE – DOOR

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°. Available with a door for cleaning purposes.

TEE- DOUBLE SOCKET PLAIN

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°.

TEE-DOUBLE SOCKET DOOR

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°. Available with a door for cleaning purposes.

CROSS TEE – PLAIN

To connect two lateral soil/waste pipelines to the main line at an angle of 87.5°.

CLEANING PIPE

Used between a vertical line to facilitate cleaning and pipe maintenance.

REDUCING BUSH

To reduce the internal diameter of fittings.

REDUCING TEE – DOOR

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 87.5°. Available with a door for cleaning purposes.

SWEPT TEE – DOOR

To connect a lateral soil/waste pipe to the main vertical line. Available with a door for cleaning purposes.

SINGLE Y – PLAIN

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°.

SINGLE Y – DOOR

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°. Available with a door for cleaning purposes.

EQUAL Y – PLAIN

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°.

EQUAL Y – DOOR

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°. Available with a door for cleaning purposes.

DOUBLE Y – PLAIN

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°.

DOUBLE Y – DOOR

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°. Available with a door for cleaning purposes.

REDUCING Y – PLAIN

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 45°.

REDUCING Y – DOOR

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 45°. Available with a door for cleaning purposes.

REVERSE Y – PLAIN

To connects two branches at an angle of 45° with invert angle

REVERSE Y – DOOR

To connect two branches at an angle of 45° with invert angle. Available with a door for cleaning purposes.

GULLY TRAP – SINGLE

To prevent foul odours emitted from the sewer from reaching building and apartments.

SQ. GULLY TRAP – WITH / W/O JALI

To prevent foul odours emitted from the sewer from reaching building and apartments.

HEIGHT RISER (6″)

For multiple draining i.e bathrooms, washbasin,washing machine, bathtub etc. which has three additional inlets provided with socket plug that can be opened as and when required. Used when height adjustments are required.

MULTI FLOOR TRAP – SQUARE JALI

To arrest debris & waste

NAHANI TRAP – W/O JALI SHORT

To drain wastewater from bathrooms, wash basins and convey to the main pipeline. It prevents odour.

NAHANI TRAP JALI (Only JALI)

To arrest debris & waste

Q – TRAP

To create a water seal and ensure efficient functioning of the drainage system.

PIPE CLIP

Used to fix / secure the pipeline to a wall or flat surface.

VENT COWL

Used to allow foul gases generated in the system to escape. It is used as a cap on top of the vertical line.

WC CONNECTOR

Used to connect the WC Pan to the soil pipe.

WC CONNECTOR – BEND

To connect a WC Pan to the soil pipe.

FLOOR TRAP

The SWR Floor Trap PVC is a plumbing fixture used to drain wastewater from bathrooms and washbasins, directing it to the main pipeline. It prevents odours from entering the living space, enhancing sanitation and hygiene in the household.

TEE – PLAIN

The SWR Tee Pipe - Plain fitting is specifically designed to connect a lateral soil/waste pipe at an angle of 87.5° to the main vertical pipe. This fitting ensures a secure and proper connection, enabling efficient flow and proper disposal of waste materials in plumbing and drainage systems.

SOCKET PLUG

To plug the Socket end of pipeline and fittings.

DOOR CAP

To close the access opening.

LIP SEAL (FOR WC CONNECTOR / TRAP)

‘Lip Seals’ are used to provide a leakproof joints between the sanitation fixtures and various traps (P,Q and S).

COUPLER

To join two lengths of pipes.

BEND 87.5° – PLAIN

To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°.

BEND 87.5° – DOOR

To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose.

BEND 45° – PLAIN

Used as a shoe for a rain water drainage line & can also provide a 45° turn to the pipeline.

BEND – SIDE DOOR LEFT HAND

To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose (Side Door on Left Hand).

BEND – SIDE DOOR RIGHT HAND

To collect waste water from the internal pipeline and divert the waste water to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose (Side Door on Right Hand).

TEE – DOOR

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°. Available with a door for cleaning purposes.

TEE – SIDE DOOR LEFT HAND

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°. Available with door for cleaning purpose (Side Door on Left Hand).

TEE – SIDE DOOR RIGHT HAND

To connect a lateral soil/waste pipe to the main vertical pipe at an angle of 87.5°. Available with door for cleaning purpose (Side Door on Right Hand).

CROSS TEE – PLAIN

To connect two lateral soil/waste pipelines to the main line at an angle of 87.5°.Place

CROSS TEE – DOOR

To connect two lateral soil/waste pipelines to the main line at an angle of 87.5°. Available with a door for cleaning purposes.

CLEANING PIPE

Used between a vertical line to facilitate cleaning and pipe maintenance.

REDUCER

The SWR Selfit Pipe-Reducer Fitting is specifically designed to reduce the size of the main line in a plumbing system. This fitting allows for smooth and efficient flow transition, optimising the performance of the overall plumbing network.

REDUCING TEE – PLAIN

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 87.5°.

REDUCING TEE – DOOR

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 87.5°. Available with a door for cleaning purposes.

REDUCING TEE – SIDE DOOR LEFT HAND

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose (Side Door on Left Hand).

REDUCING TEE – SIDE DOOR RIGHT HAND

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 87.5°. Available with door for cleaning purpose (Side Door on Right Hand).

SWEPT TEE – PLAIN

To connect a lateral soil/waste pipe to the main vertical line.

SWEPT TEE – DOOR

To connect a lateral soil/waste pipe to the main vertical line. Available with a door for cleaning purposes.

REDUCING SWEPT TEE – PLAIN

To connect a lateral soil/waste pipe to the main vertical line.

REDUCING SWEPT TEE – DOOR

To connect a lateral soil/waste pipe to the main vertical line. Available with a door for cleaning purposes.

SINGLE Y – PLAIN

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°.

SINGLE Y – SIDE DOOR LEFT HAND

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°. Available with a door for cleaning purposes. (Left Hand)

SINGLE Y – SIDE DOOR RIGHT HAND

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°. Available with a door for cleaning purposes. (Right Hand)

DOUBLE Y – PLAIN

To connect a branch soil/waste pipeline to the main vertical pipeline at an angle of 45°.

REDUCING Y – PLAIN

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 45°.

REDUCING Y – DOOR

To connect a reducing soil/waste pipeline to the main pipeline at an angle of 45°. Available with a door for cleaning purposes.

P TRAP

The SWR Pipe-P Trap is an essential component that plays a crucial role in maintaining the efficiency of a drainage system. Its main function is to create a reliable water seal, which prevents foul odours and harmful gases from entering the living or working spaces. By effectively trapping and holding water, this fitting ensures smooth and efficient drainage flow.

SWR Multi-Floor Trap Without a Jali Fitting

The Finolex SWR Multi-Floor Trap Without a Jali Fitting is an essential plumbing fitting used for draining wastewater from bathrooms, and washbasins, conveying it to the main pipeline. It prevents foul odours from entering the bathroom or living area by trapping the wastewater and keeping it isolated from the venting system.

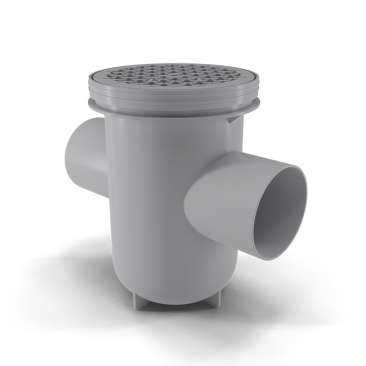

SWR Gully Trap Double Fitting

The Finolex SWR Gully Trap Double Fitting serves as a crucial component in plumbing systems to prevent foul odours emitted from sewers from infiltrating buildings and apartments. This fitting effectively traps and contains wastewater while allowing proper drainage, ensuring a hygienic and odour-free environment.

SWR Pipe - Straight Connector

The Finolex SWR Pipe Straight Connector is an essential part of a plumbing system that joins a WC pan and soil pipe. It provides a secure and leak-proof connection, helping to prevent any blockages or overflowing. This connector is designed to withstand high pressure and temperatures, ensuring long-lasting durability and reliability.

NAHANI TRAP – W/O JALI SINGLE PIECE

Experience a hassle-free solution for draining wastewater from bathrooms and wash basins with the Finolex SWR Nahani Trap. This trap effectively directs the water to the main pipeline, ensuring a smooth and efficient drainage system. Its unique design doesn't include a jali, providing uninterrupted flow while preventing unpleasant odours.

MULTI FLOOR TRAP – 7″ HEIGHT

The SWR 7-inch Multi-floor Trap Fitting is a versatile solution for effectively draining multiple sources such as bathrooms, washbasins, washing machines, and bathtubs. This fitting is equipped with three additional inlets that have socket plugs, allowing you to open them as needed for optimal drainage. With this fitting, you can prevent unpleasant odours while ensuring a smooth and efficient drainage system.

MULTI FLOOR TRAP – WITH JALI

The Finolex SWR Multi-Floor Trap with Jali is designed for draining wastewater from bathrooms and wash basins, channelling it to the main pipeline while preventing odours. This professional plumbing solution ensures a hygienic and odour-free drainage system for a clean living environment.

SWR Bend 87.5 - Door

The SWR Bend 87.5 - Door is a specialised plumbing fitting designed to collect wastewater from an internal pipeline and redirect it to the main pipeline at a precise angle of 87.5°. This bend is equipped with a door, providing easy access for cleaning and maintenance of the pipeline, ensuring optimal functioning and longevity of the system.

SWR Pipe S-Trap

The SWR Pipe: S-Trap is a plumbing fitting designed to create a water seal in the drainage system. It is essential in preventing the release of harmful sewer gases back into the building and ensures the proper functioning of the system. This trap is easy to install and maintain, contributing to the overall efficiency and longevity of the plumbing system.

SWR Selfit Pipe - Reducer Fitting

The SWR Selfit Pipe-Reducer Fitting is specifically designed to reduce the size of the main line in a plumbing system. This fitting allows for smooth and efficient flow transition, optimising the performance of the overall plumbing network.

SWR Selfit Reducing Tee Fitting

The SWR Selfit Reducing Tee Fitting is a reliable and durable solution for connecting a reducing soil/waste pipeline to the main pipeline. With its specific design, it allows for a smooth connection at an angle of 87.5°, ensuring optimal water flow and preventing any potential leaks or blockages in your plumbing system.

SINGLE Y – DOOR

The SWR Ringfit Pipe with a Single Y-Door is used to connect a branch soil/waste pipeline at a 45° angle to the main vertical pipeline. It features a convenient door for easy access and cleaning purposes, ensuring effective maintenance of the drainage system.

DOUBLE Y – DOOR

The SWR Ringfit - Double Y-Door Fitting is specifically designed to connect a branch soil/waste pipeline at a 45° angle to the main vertical pipeline. This fitting comes with a door for easy access and cleaning purposes. It ensures a secure and proper connection, allowing for efficient flow and easy maintenance in plumbing and drainage systems.

SWEPT TEE – PLAIN

The Swept Tee Plain Fitting for SWR Pipes is used to connect a lateral soil/waste pipe to the main vertical line in plumbing and drainage systems. It allows for a smooth and secure connection, facilitating the proper flow and disposal of waste materials.
