FEMALE THREADED ADAPTER

As Per IS 7834

To connect with a male threaded pipe and accessories.

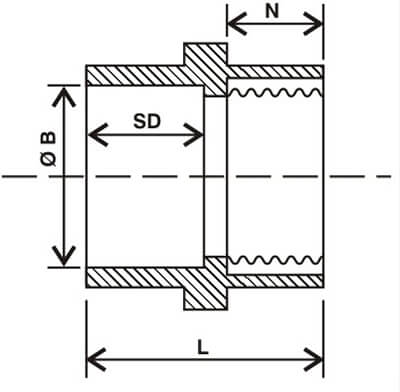

Dimensions

Size
(mm)
Size
(Inch)
Pressure Rating (Kg/cm2)      L B      S.D.       N Material  Code Standard Pkg.
20×20 ½”×½” 10 35.30 20.30 16.00 19.30 2113 500
25×25 ¾”×¾” 10 40.55 25.30 19.00 18.30 2115 300
25×20 ¾”×½” 10 38.50 25.30 19.00 16.00 2114 300
32×32 1"×1” 10 47.00 32.40 22.00 19.68 2118 225
32×25 1”×¾” 10 45.00 32.40 22.00 18.30 2117 200
32×20 1”×½” 10 41.50 32.40 22.00 16.00 2116 200
40×40 1¼"×1¼" 10 53.60 40.50 26.00 24.40 2119 100
50×50 1½”×1½” 10 66.00 50.50 31.00 28.00 2120 75
63×50 2"×1½” 6 65.00 63.50 38.00 24.50 2101 120
63×63 2"×2" 6 80.00 63.50 38.00 34.00 2102 50
63×63 2"×2" 10 69.00 63.50 38.00 24.00 2121 70
75×63 2½”×2" 6 80.00 75.30 44.00 28.00 2103 32
75×75 2½”×2½” 6 79.50 75.30 44.00 29.80 2104 40
75×75 2½"×2½" 10 84.00 75.30 44.00 30.00 2122 40
90×63 3"×2" 6 82.00 90.50 51.00 28.00 2105 40
90×75 3"×2½” 6 98.00 90.50 51.00 43.00 2106 40
90×90 3"×3" 6 99.50 90.50 51.00 42.30 2107 40
90×90 3"×3" 10 97.00 90.50 51.00 38.00 2123 30
110×75 4"×2½" 6 95.90 110.50 61.00 30.00 2108 30
110×90 4"×3" 6 100.20 110.50 61.00 33.00 2109 30
110×110 4"×4" 6 130.00 110.50 61.00 58.00 2110 15
110×110 4"×4" 10 114.00 110.50 61.00 53.00 2124 15
140×140 5"×5" 6 133.00 140.70 76.00 46.00 2111 12
160×160 6"×6" 6 142.00 160.70 86.00 45.00 2112 9
* All dimensions in "MM"
