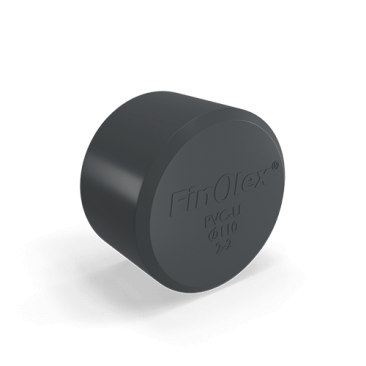

END CAP (PLAIN/THREADED)

As Per IS 7834

To Plug the plain and male threaded end of Pipe & accessories. Available in plain or threaded.

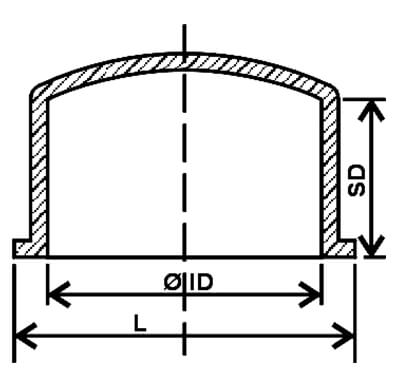

Dimensions

Size
(mm)		 Size
(Inch)		 Pressure Rating (Kg/cm2) I.D. SD L Plain Threaded
Material  Code Standard Pkg. Material  Code Standard Pkg.
20 ½" 10 20.30 16.00 23.10 2083 500 – –
25 ¾" 10 25.30 19.00 27.00 2084 400 – –
32 1" 10 32.40 22.00 31.10 2085 300 – –
40 1¼" 10 40.35 26.00 34.00 2086 100 2098 150
50 1½" 10 50.35 31.00 40.00 2087 75 2099 75
63 2" 10 63.50 38.00 46.50 2088 100 2100 150
75 2½" 6 75.50 45.00 55.00 2076 100 2095 75
75 2½" 10 75.50 46.00 53.60 2089 75 – –
90 3" 6 90.50 51.00 61.00 2077 50 2096 50
90 3" 10 90.50 51.00 63.30 2090 50 – –
110 4" 6 110.50 61.00 75.00 2078 30 2097 30
110 4" 10 110.50 59.50 74.10 2091 25 – –
140 5" 6 140.50 76.00 86.00 2079 15 – –
140 5" 10 140.50 76.50 92.60 2092 15 – –
160 6" 6 160.50 86.00 112.00 2080 12 – –
160 6" 10 160.50 86.50 104.60 2093 12 – –
180 7" 6 180.60 96.00 109.00 2081 10 – –
200 8" 6 200.60 106.00 120.00 2082 6 – –
200 8" 10 200.60 107.00 129.30 2094 15 – –
* All dimensions in "MM"
